JV150002 – Bronze Flanged Strainer

An economical bronze Y-type strainer with a stainless steel screen ideally suited for water applications to protect meters, pumps, valves and other pipeline equipment.

Type
Y-Type
Size & Connections
DN25 to DN100 • PN16 Flange (others on request)
Duty
Air • Inert Gases • Oil • Steam • Water
Materials
Bronze Body • Stainless Steel Filter Screen
Pressure Rating
PN16
Temperature
-10°C to 180°C

Contact UsJV150002 – Bronze Flanged Y-Type Strainer - PDF Datasheet

JV150002 – Bronze Flanged Y-Type Strainer

JV150003 – Cast Iron Flanged Strainer

The JV150003 is an economical cast iron Y type strainer with a stainless steel screen, ideally suited for water applications to protect meters, pumps, valves and other pipeline equipment.

Type
Y-Type
Size & Connections
DN15 to DN400 • PN16 Flange (others on request)
Duty
Air • Inert Gases • Oil • Process • Steam • Water
Materials
Cast Iron Body • Stainless Steel Filter Screen
Pressure Rating
16 Bar
Temperature
-10°C to 180°C @ 16 Bar • 300°C @ 9.6 Bar

Contact UsJV150003 – Cast Iron Flanged Y-Type Strainer - PDF Datasheet

JV150003 – Cast Iron Flanged Y-Type Strainer

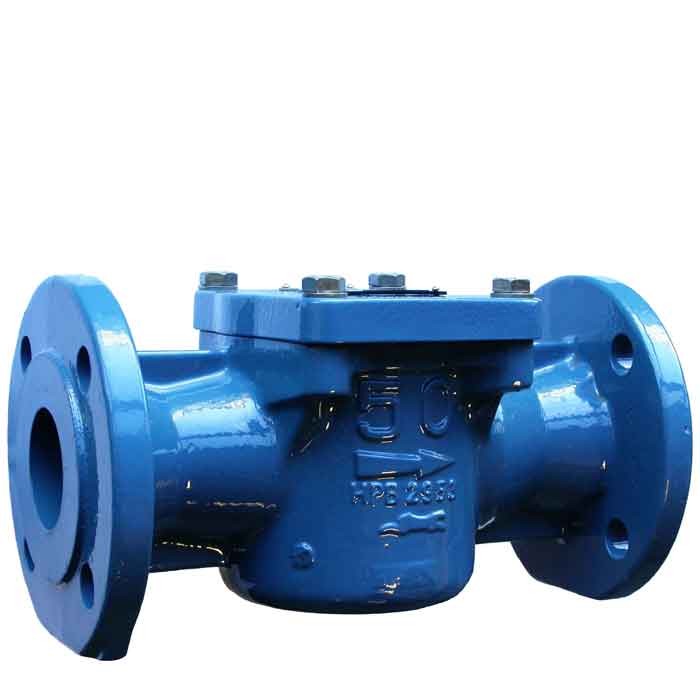

H4010 – Elster Honeywell Cast Iron Basket Strainer

The Elster Honeywell H4010 basket type strainer is designed to protect water meters and other pipeline components from large particles. A special wave design provides the largest possible area of the filter element.

Type
Basket
Size & Connections
DN40 to DN150 • PN16 Flange
Duty
Water
Materials
Cast Iron (Epoxy Coated) Body • Stainless Steel Filter Screen
Pressure Rating
16 Bar
Temperature
0°C to 50°C @ 16 Bar
Compliance & Approvals

Contact UsH4010 – Elster Honeywell Cast Iron WRAS Approved Basket Strainer - PDF DatasheetElster now part of Honeywell

H4010 – Elster Honeywell Cast Iron WRAS Approved Basket Strainer

JV150004 – Cast Steel Flanged Strainer – PN16

The JV150004 cast steel Y type strainer with a stainless steel screen is suitable for many applications to protect meters, pumps, valves and other pipeline equipment.

Type
Y-Type
Size & Connections
DN15 to DN150 • PN25/40 Flange
Duty
Air • Inert Gases • Oil • Process • Steam • Water
Materials
Cast Steel Body • Stainless Steel Filter Screen
Pressure Rating
16 Bar
Temperature
-10°C to 50°C @ 40 Bar • -20°C @ 30 Bar • 400°C @ 30 Bar
Contact UsJV150004 – Cast Steel Flanged Strainer - PDF Datasheet

JV150004 – Cast Steel Flanged Strainer

JV150019 – Bronze Marine Bolted Bonnet Strainer

The JV150019 is a marine-grade bronze Y-type strainer with a stainless steel screen ideally suited for seawater applications to protect meters, pumps, valves and other pipeline equipment.

Type
Y-Type
Size & Connections
DN15 to DN400 • PN16 Flange (others on request)
Duty
Air • Inert Gases • Oil • Steam • Water
Materials
Bronze Body • Stainless Steel Filter Screen
Pressure Rating
PN16
Temperature
0°C to 300°C (dependent on pressure)
Compliance & Approvals
3.1 Material Certificate (on request)
Contact UsJV150019 – Bronze Marine Bolted Bonnet Strainer - PDF Datasheet

JV150019 – Bronze Marine Bolted Bonnet Strainer

JV150005 – Stainless Steel Flanged Strainer – PN16

The JV150005 stainless steel ‘Y’ type strainer with a stainless steel screen ideally suited for use in the water distribution, gas oil, steam and petrochemical applications to protect meters, pumps, valves and other pipeline equipment.

Type
Y-Type
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Inert Gases • Oil • Process • Steam • Water
Materials
Stainless Steel Body • Stainless Steel Filter Screen
Pressure Rating
16 Bar
Temperature
-20°C to 180°C (dependent on pressure)
Contact UsJV150005 – Stainless Steel Flanged Strainer - PN16 - PDF Datasheet

JV150005 – Stainless Steel Flanged Strainer - PN16

JV150012 – Cast Iron Straight Mud Box (Basket Type) Strainer

The JV150012 straight pattern mud box strainer helps to protect marine systems from damage by filtering debris and large particles in suction and discharge lines for sea cooling and bilge systems.

Type
Mud Box (Basket) • Straight Pattern
Size & Connections
DN25 to DN750 • PN10 Flange (others on request)
Duty
Water
Materials
Cast Iron Body • Stainless Steel Filter Screen
Pressure Rating
DN25-450: 4 Bar • DN500-750: 2.5 Bar
Temperature
-10°C to 120°C
Compliance & Approvals
DIN 87151 D
Contact UsJV150012 – Cast Iron Straight Mud Box (Basket Type) Strainer - PDF Datasheet

JV150012 – Cast Iron Straight Mud Box (Basket Type) Strainer

JV150014 – Cast Iron Angle Mud Box (Basket Type) Strainer

The JV150014 angle pattern mud box strainer helps to protect marine systems from damage by filtering debris and large particles in suction and discharge lines for sea cooling and bilge systems.

Type
Mud Box (Basket) • Angle Pattern
Size & Connections
DN25 to DN600 • PN10 Flange (others on request)
Duty
Water
Materials
Cast Iron Body • Stainless Steel Filter Screen
Pressure Rating
DN25-450: 4 Bar • DN500-600: 2.5 Bar
Temperature
-10°C to 120°C
Compliance & Approvals
DIN 87151 E
Contact UsJV150014 – Cast Iron Angle Mud Box (Basket Type) Strainer - PDF Datasheet

JV150014 – Cast Iron Angle Mud Box (Basket Type) Strainer

JV150013 – Bronze Straight Mud Box (Basket Type) Strainer

The JV150013 straight pattern mud box strainer helps to protect marine systems from damage by filtering debris and large particles in suction and discharge lines for sea cooling and bilge systems.

Type
Mud Box (Basket) • Straight Pattern
Size & Connections
DN25 to DN700 • PN10 Flange (others on request)
Duty
Water
Materials
Cast Iron Body • Stainless Steel Filter Screen
Pressure Rating
DN25-450: 4 Bar • DN500-700: 2.5 Bar
Temperature
-10°C to 120°C
Compliance & Approvals
DIN 87151 D
Contact UsJV150013 – Bronze Straight Mud Box (Basket Type) Strainer - PDF Datasheet

JV150013 – Bronze Straight Mud Box (Basket Type) Strainer

JV150015 – Bronze Angle Mud Box (Basket Type) Strainer

The JV150015 angle pattern mud box strainer helps to protect marine systems from damage by filtering debris and large particles in suction and discharge lines for sea cooling and bilge systems.

Type
Mud Box (Basket) • Angle Pattern
Size & Connections
DN25 to DN600 • PN10 Flange (others on request)
Duty
Water
Materials
Bronze Body • Stainless Steel Filter Screen
Pressure Rating
DN25-450: 4 Bar • DN500-600: 2.5 Bar
Temperature
-10°C to 120°C
Compliance & Approvals
DIN 87151 E
Contact UsJV150015 – Bronze Angle Mud Box (Basket Type) Strainer - PDF Datasheet

JV150015 – Bronze Angle Mud Box (Basket Type) Strainer

JV150017 – Stainless Steel Strainer Basket Element – Foot Valve Duty

Basket strainer element with a PN10/16 flanged connection that can be attached to check (non-return) valves to convert them into Foot Valves. Click here for our range of check (non-return) valves.

Type
Basket Element for Foot Valve Duty
Size & Connections
DN50 to DN300 • PN10/16 Flange
Duty
Water • Glycol Solution (max 30%)
Materials
Stainless Steel
Pressure Rating
16 Bar
Temperature
-20°C to 200°C
Contact UsJV150017 – Stainless Steel  Strainer Basket Element - Foot Valve Duty - PDF Datasheet

JV150017 – Stainless Steel Strainer Basket Element - Foot Valve Duty

JV150018 – Galvanized Steel Strainer Basket Element – Foot Valve Duty

Basket strainer element with a PN10/16 flanged connection that can be attached to check (non-return) valves to convert them into Foot Valves. Click here for our range of check (non-return) valves.

Type
Basket Element for Foot Valve Duty
Size & Connections
DN50 to DN300 • PN10/16 Flange
Duty
Water • Glycol Solution (max 30%)
Materials
Galvanized Steel
Pressure Rating
16 Bar
Temperature
-20°C to 200°C
Contact UsJV150018 – Galvanized Steel  Strainer Basket Element - Foot Valve Duty - PDF Datasheet

JV150018 – Galvanized Steel  Strainer Basket Element - Foot Valve Duty

JV150022 – Cast Iron WRAS Approved Y-Type Strainer

The JV150022 is an economical WRAS approved cast iron Y type strainer with a stainless steel screen, ideally suited for potable water applications to protect meters, pumps, valves and other pipeline equipment.

Type
Y Pattern
Size & Connections
DN50 to DN300 • PN16 Flange
Duty
Water
Materials
Cast Iron (Epoxy Coated) Body • Stainless Steel Filter Screen
Pressure Rating
16 Bar
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS
Contact UsJV150022 – Cast Iron WRAS Approved Y-Type Strainer - PDF DatasheetWRAS Approved Product

JV150022 – Cast Iron WRAS Approved Y-Type Strainer

JV150020 – Cast Iron Y-Type Strainer – Flanged PN6

An economical cast iron Y-type strainer with a stainless steel screen ideally suited for water applications to protect meters, pumps, valves and other pipeline equipment.

Type
Y-Type
Size & Connections
DN50 to DN200 • PN6 Flange
Duty
Air • Inert Gas • Oil • Water
Materials
Cast Iron Body & Bonnet • Stainless Steel Filter Screen
Pressure Rating
16 Bar
Temperature
-10 to 150°C
Contact UsJV150020 – Cast Iron Y-Type Strainer - Flanged PN6 - PDF Datasheet

JV150021 – Cast Iron Y-Type Strainer - Flanged PN6
